Machine for linear is roll forming machine line. This is for S series machine, the most popular for this series ceiling is the S300mm.
Line drawing:
Machine List:
| No.Item | Item | Qty | Note |
|---|---|---|---|
| 1 | Decoiler | 1 | |
| 2 | Roll forming machine | 1 | |
| 3 | Collection | 1 |
Specification:
| 1. Machine specification | |
|---|---|
| Electric power | 3.7KW (50HZ, 380V) |
| Weight of machine | 2000KGS |
| Dimension(L*W*H） | 35000*800*800MM |
| 2. Raw material | |
| Thickness | 0.7, 0.8, 0.9MM Aluminum |
| Product Max length | 6000MM |
| 3. Production specification | |
| Rolling speed | 25M/MIN (Rolling cutting) |
| Control system of machine | PLC, fully automatic operation |
| Rolling transmission&cutting system | By hydraulic |
| Tolerance of length | +_ 2mm |
Machine picture:

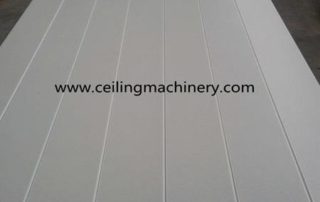

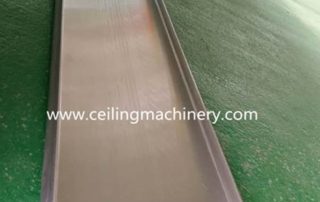

S-series Linear ceiling products for view:
Install system:

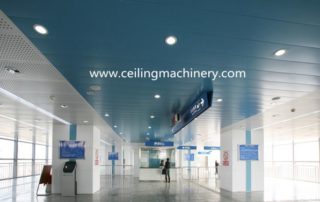

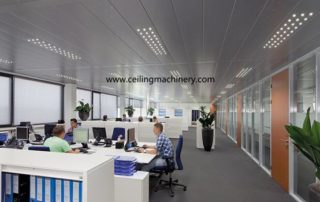

S-series Linear Ceiling Project View:
