Baffle ceiling is very popular and welcome for the public space ceiling projects because of easy installing, straight line view and various shape can be produced. Widely applied at airport, metro station, shopping mall and other commercial building area, etc. Common shape and size would be the U shape in 20-200mm.
Line drawing:
Machine List:
| No.Item | Item | Qty | Note |
|---|---|---|---|
| 1 | Decoiler | 1 | |
| 2 | Roll forming machine | 1 | |
| 3 | Collection | 1 |
Specification:
| 1. Machine specification | |
|---|---|
| Electric power | 7.7KW (50HZ, 380V) |
| Weight of machine | 8000KGS |
| Dimension(L*W*H） | 85000*1300*1200MM |
| 2. Raw material | |
| Thickness | 0.4 0.5 1.2MM Aluminum, GI |
| Product Max length | 6000MM |
| 3. Production specification | |
| Rolling speed | 40M/MIN (Rolling cutting) |
| Control system of machine | PLC, fully automatic operation |
| Rolling transmission&cutting system | By hydraulic |
| Tolerance of length | +_ 2mm |
| Wheel | Total 14Group (3+10+1) |

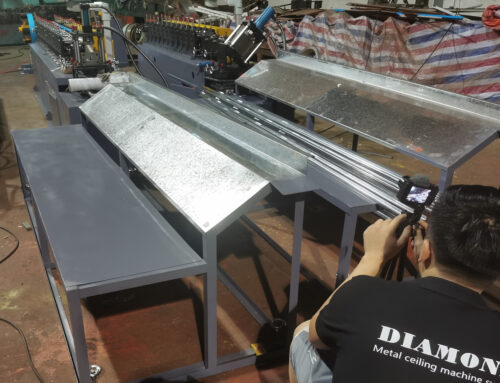

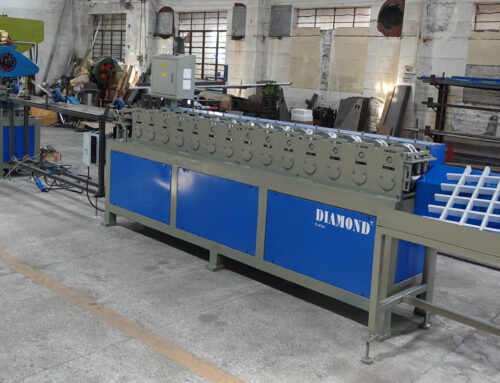

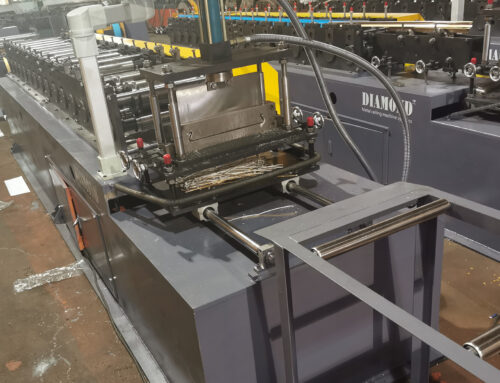

Machine picture:
Baffle ceiling products for view:
Width range from 25 to 200mm, Height range from 25 to 150mm
Auto adjusted by our new design baffle ceiling machine at 40-80m/min speed.
Install system:

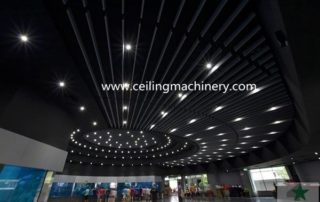

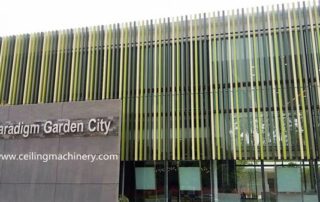

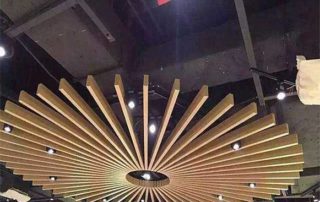

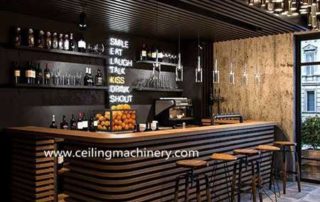

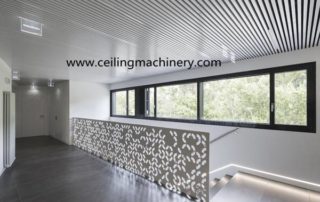

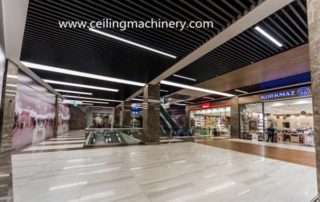

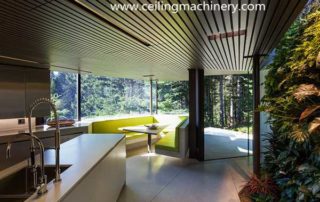

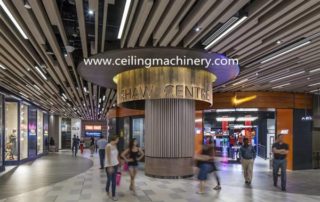

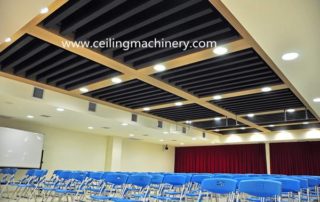

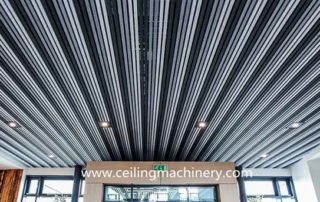

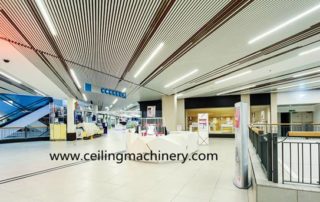

Baffle Ceiling Project View:
